Description

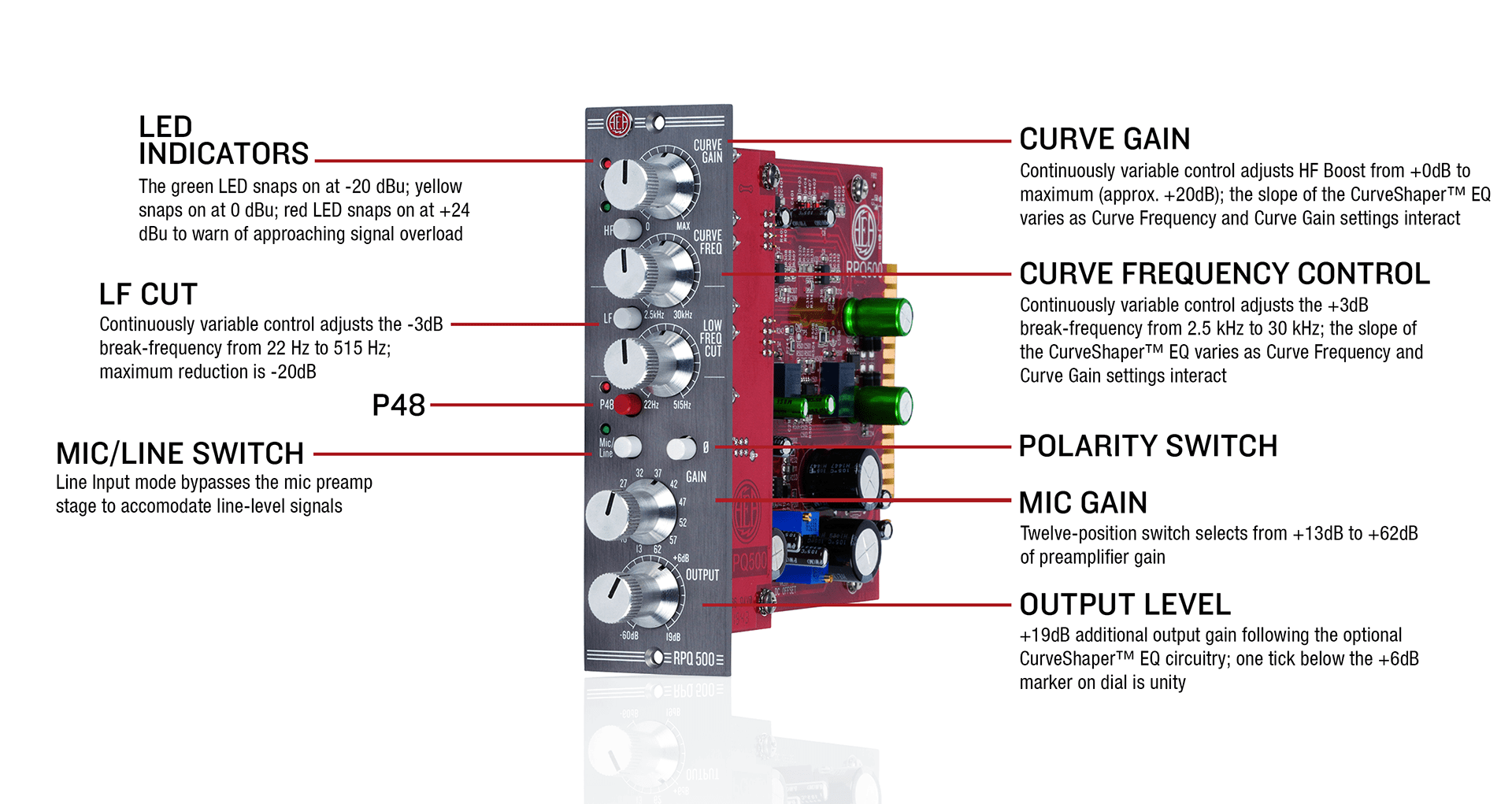

RPQ500 PREAMP OVERVIEW
- One channel with 81dB of sweet and quiet JFET gain
- High-frequency CurveShaper™ EQ and low frequency proximity control
- Mic and line inputs for mixdown EQ versatility
- Switchable phantom power, polarity, line/mic
- NoLoad™ 10k Ohm high-impedance circuitry providing better overall transients, frequency response, and higher output sensitivity
- Made in the U.S.A.
ENHANCE YOUR RIBBONS
The AEA RPQ500 Ribbon Preamp and EQ provides one channel of high-output, high-impedance, and low-noise gain with a rich and natural sound that brings out the full potential of your microphones.
The RPQ500 excels at drawing out the warmth and lush sound that ribbons are famous for.
POWERHOUSE IN A 500 FORMAT
IT’S OH-SO-QUIET
With the RPQ500, you will never consider a source too quiet to record with a ribbon mic ever again. Passive ribbons with low output levels require preamps that supply a high level of output. If the preamp you use doesn’t have enough clean gain, the mic signal may seem too soft or noisy which may be apparent when recording quiet acoustic guitars or strings, especially at a distance or with long cable runs. The RPQ500 eliminates this concern.
CURVESHAPER EQ
The RPQ500’s CurveShaper™ EQ is a powerful tool that gives you the ability to control your ribbons right at the start of the signal path. Adjustable low and high-frequency controls allow you to tame proximity problems and provide high-frequency extension with slope control.
The high-frequency filter boost enables you to add presence and air to your source –perfect for sources like ribbons and 2-busses that often benefit from some extra top-end. The low-frequency control easily removes bass build-up in a fast and unobtrusive way.
HIGH IMPEDANCE MAKES A HUGE DIFFERENCE
The sound and tonality of dynamic microphones like ribbons and moving-coils are directly affected by the impedance of a preamp. The higher the impedance, the better the sound. The RPQ500 boasts an extra high input impedance of 10K Ohms.
Preamps with an impedance of under 10k ohms will limit the lows, highs, and transients of your passive microphones. The RPQ500’s high impedance will reveal your microphone’s true nature– a thick low-end, open top-end, and articulate transient response that you will need to hear to believe. This means that condensers and active microphones will also benefit from the RPQ500’s impedance.
